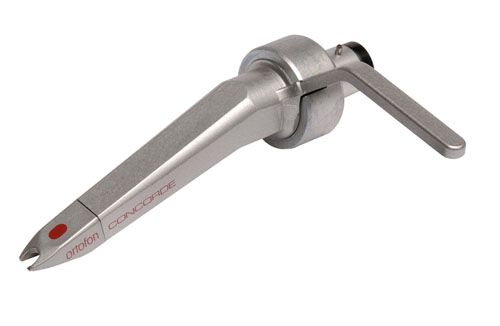

Přenoska Ortofon Concorde Pro

The Pro Series of cartridges provides a great balance of sound quality with tracking ability, for virtually any style of music. With flat, transparent sound across the spectrum and excellent handling ability, the Pro Series represents one of the longest running values in DJ cartridges.





Technické parametry přenosky Ortofon Concorde Pro

Output voltage at 1000Hz, 5cm/sec.

5 mV

Channel balance at 1kHz

1,5 dB

Channel separation at 1kHz

20 dB

Channel separation at 15 kHz

15 dB

Frequency range at -3dB

20-20.000 Hz

Frequency response

20-20.000 Hz 3dB/-2dB

Tracking ability at 315 Hz at recommmende tracking force

70 μm

Compliance, dynamic lateral

7 μm/m N

Stylus type

Spherical

Stylus tip radius

R 18 μm

Tracking force range

3,0-5,0 g (30-50 mN)

Tracking force recommended

4,0 g (40 mN)

Tracking angle

20°

Internal impedance, DC resistance

750 Ohm

Internal inductance

450 mH

Recommended load resistance

47 kOhm

Recommended load capacitance

200-600 pF

Cartridge weight

18,5 g

Replacement stylus unit

Pro
