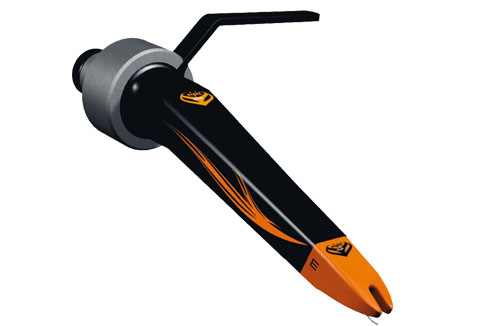

Přenoska Ortofon Concorde Nightclub MKII

Following in the footsteps of the legendary Night Club series, the re-engineered Night Club MKII boasts numerous sonic improvements in both club and studio settings.  With a new cartridge body, the Night Club MKII offers increased output voltage for powerful, energetic sound and enhanced performance from integrated phono preamps such as the ones found in DJ mixers).  The redesigned elliptical stylus provides well-balanced high frequency response and ample low end reproduction.  The Night Club MKII marks a new generation of club cartridges, designed to surpass the gold standard set by the original Night Club cartridge.

Technické parametry přenosky Ortofon Concorde Nightclub MKII

Output voltage at 1000Hz, 5cm/sec.

8 mV

Channel balance at 1kHz

1,5 dB

Channel separation at 1kHz

23 dB

Channel separation at 15 kHz

15 dB

Frequency range at -3dB

20-22.000 Hz

Frequency response

20-20.000 Hz +/- 1,5 dB

Tracking ability at 315 Hz at recommmende tracking force

80 μm

Compliance, dynamic lateral

7 μm/m N

Stylus type

Special Elliptical

Stylus tip radius

r/R 13/25 μm

Tracking force range

2,0-5,0 g (20-50 mN)

Tracking force recommended

3,0 g (30 mN)

Tracking angle

20°

Internal impedance, DC resistance

1.000 Ohm

Internal inductance

580 mH

Recommended load resistance

47 kOhm

Recommended load capacitance

200-600 pF

Cartridge weight

18,5 g

Replacement stylus unit

Nightclub E MKII
