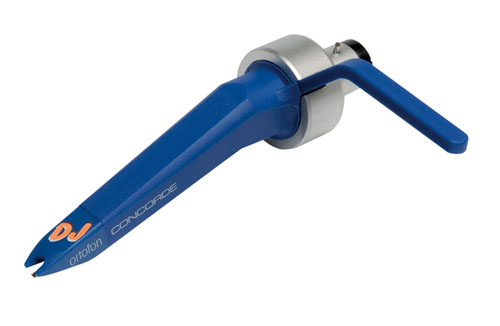

Přenoska Ortofon Concorde DJ S

The DJ series has been known to many as the "jack of all trades," with improved tracking, alongside of accurate sound reproduction.  Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied.  The DJ series of cartridges are great for any style of music, and has been a favored choice of DJs around the world.



Technické parametry přenosky Ortofon Concorde DJ S

Output voltage at 1000Hz, 5cm/sec.

6 mV

Channel balance at 1kHz

2 dB

Channel separation at 1kHz

23 dB

Channel separation at 15 kHz

15 dB

Frequency range at -3dB

20-20.000 Hz

Frequency response

20-18.000 Hz 3dB/-2 dB

Tracking ability at 315 Hz at recommmende tracking force

80 μm

Compliance, dynamic lateral

9 μm/m N

Stylus type

Spherical

Stylus tip radius

R 18 μm

Tracking force range

2,0-4,0 g (20-40 mN)

Tracking force recommended

3,0 g (30 mN)

Tracking angle

20°

Internal impedance, DC resistance

750 Ohm

Internal inductance

450 mH

Recommended load resistance

47 kOhm

Recommended load capacitance

200-600 pF

Cartridge weight

18,5 g

Replacement stylus unit

DJ S
